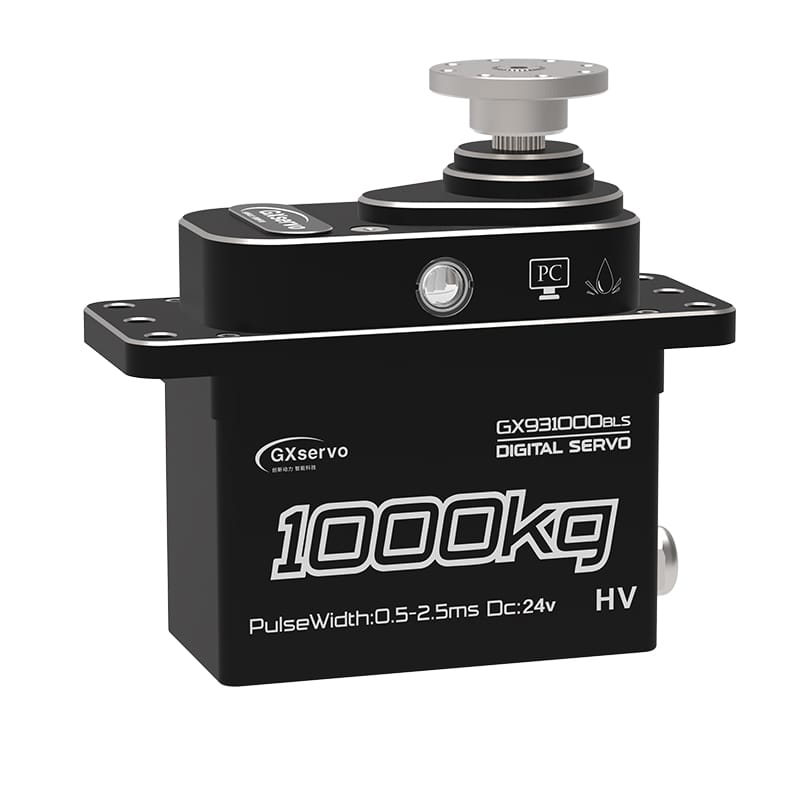

GXservo 1000kg Servo PWM digital Servos:
This 1000KG high torque servo is developed for high voltage applications and is mainly used in the industrial automation industry range. Built-in high efficiency coreless motors optimised for 20-24V operation and heavy duty metal gear shafts etc. Advanced chip motherboard design for your automated production equipment.
| Item | Specification |
|---|---|
|
No Load Speed
|
12.0V ≤0.55sec/60° |
| 24.0V ≤0.45sec/60° | |
| Max.Torque*
|
12.0V ≥ 800kgf.cm |
| 24.0V ≥1000kgf.cm | |
| Pulse Width Range | 500-2500us |
| Dead Band Width | ≤ 2 us |
| Sizes | 132x55x100mm |
| Weight | 1060g(No Inclidong Accessory) |
| Case Material | Aluminum Alloy |
| Gear Set Material | Metal Gear |
| Motor Type | Brushless Motor |
# **1000kg Ultra-High Torque Brushless Servo – Industrial Power Unit for Heavy-Duty Equipment**
## **🏭 Unmatched Actuation Power for Extreme Industrial Applications**
This **1000kg ultra-high-torque brushless servo** delivers **unprecedented power density** and **industrial-grade reliability**, engineered for the most demanding heavy equipment:
– **🏗️ Mega-Tonnage Press Machines** – 1000+ ton stamping force control
– **🏭 Steel Mill Rolling Equipment** – Massive roller positioning
– **🚢 Shipyard Gantry Cranes** – Precision heavy load movement
– **⚡ Hydraulic Press Alternatives** – Electric force replacement
– **🛠️ Mining Excavator Arms** – Extreme digging force control
—
## **⚙️ 7 Industrial Performance Breakthroughs**
### **1. Record 1000kgf.cm Torque**
– **1000kgf.cm @24V** – Industry-leading power
– **800kgf.cm @12V** backup performance
– **Brushless direct drive** eliminates gear wear
### **2. Mega-Industrial Construction**
– **1.06kg forged titanium-aluminum** hybrid housing
– **Carbide-coated steel gears** – 500,000+ cycle rating
– **IP69K protection** against high-pressure washdowns
### **3. Precision Giant Control**
– **0.45sec/60° @24V** for massive loads
– **≤2μs deadband** – micron-level accuracy
– **Active vibration suppression**
### **4. Smart Mega-Features**
– **500-2500μs programmable range**
– **Torque ripple compensation**
– **Real-time load monitoring**
### **5. 24/7 Extreme Duty**
– **Continuous 200% overload capacity**
– **-40°C to 105°C operating range**
– **Shock-resistant to 50G impacts**
### **6. Industrial IoT Ready**
– **Industrial Ethernet/PROFINET**
– **Condition monitoring outputs**
– **Predictive maintenance enabled**
### **7. Mega-Equipment Integration**
– **Flange mounts for 500+ kW systems**
– **Hydraulic retrofit kits available**
– **Explosion-proof versions**
—
## **🛠️ Heavy-Industrial Integration Protocol**
### **🔧 Giga-Installation**
1. Use **200mm mounting flange** (included)
2. Apply **high-strength anti-vibration pads**
3. Implement **load-cell feedback system**
### **⚙️ Calibration Procedure**
– **24V recommended** for full performance
– **Neutral position**: 1500μs
– **Full stroke**: 500-2500μs programmable
### **🧰 Mega-Maintenance**
– **6-month bearing inspection**
– **Annual gearbox service**
– **3-year factory recalibration**
—
## **🛡️ Ultra-Industrial Reliability**
– **200,000-hour design life**
– **5-year premium warranty**
– **ISO 13849-1 PL e certified**
– **MIL-STD-810H compliant**
—
## **🏭 Why Mega-Industrial Engineers Specify This Servo**
✔ **Actual 1000kg torque** for extreme loads
✔ **Military-grade construction** for harsh plants
✔ **Precision control** of massive equipment
✔ **Proven in steel/mining/shipbuilding**
—
## **📦 Ultra-Industrial Package**
– (1) 1000kg brushless servo unit
– (2) 200mm titanium mounting flanges
– (1) Industrial IoT interface kit
– (1) 500-hour break-in grease
– Heavy-equipment integration manual
**🔍 Industrial SEO Keywords:**
1000kg Servo | Ultra Torque Actuator | Industrial Power Servo | Mega Press Servo | Mining Equipment Servo | Steel Mill Servo | Heavy Machinery Servo | Brushless Industrial Servo | Gantry Crane Servo | Shipbuilding Servo
**🖼️ Technical Visuals:**
1. Servo operating 1000-ton press
2. Torque comparison vs hydraulic systems
3. Steel mill installation
4. Cross-section of carbide gear train
**💡 Chief Engineer Tip:** For mega-press applications, combine with our **FORCE-MASTER** control system for closed-loop tonnage monitoring!
