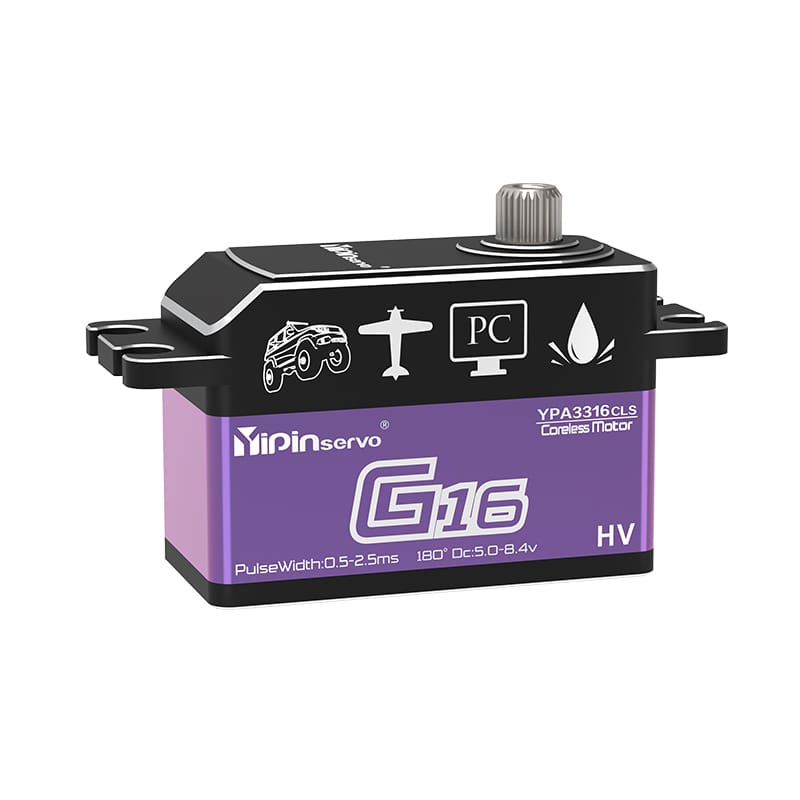

YIPINservo 16kg Servo PWM digital Servos:
Short body short version servo shell all use aviation aluminum alloy CNC precision manufacturing, steel precision gears, coreless motor, high sensitivity, compact body, high-voltage circuit, waterproof and dustproof, can be slow to start and blocking protection function; support free computer parameter adjustment function (need to additionally purchase a USB programming card to adjust the parameters), support the free adjustment of the pulse width angle. Adaptation scene: 1/10 to 1/8 of the remote control toy car, aeromodeling, ship modeling, robotics industrial field.
| Item | Specification |
|---|---|
| No Load Speed | 6.0V ≤ 0.08sec/60° |
| 7.4V ≤ 0.07sec/60° | |
| 8.4V ≤ 0.06sec/60° | |
| Max. Torque* | 6.0V ≥ 14kgf.cm |
| 7.4V ≥16kgf.cm | |
| 8.4V ≥ 18kgf.cm | |
| Pulse Width Range | 500-2500us |
| Dead Band Width | ≤ 3us |
| Sizes | 41x20x28.5mm |
| Weight | 70 g(No Inclidong Accessory) |
| Case Material | Aluminum Alloy |
| Gear Set Material | Metal Gear |
| Motor Type | Coreless Motor |
# **16kg Compact Coreless Servo – Ultimate Crawler Performance**
## **🏔️ Precision Power for Rock Crawling**
Engineered for **1/10 scale crawlers and trail trucks**, our **16kg coreless servo** delivers **smooth, controlled torque** in an ultra-compact package, perfect for:
– **🪨 Technical Rock Crawling** (precise slow-speed control)
– **🌲 Trail Adventures** (responsive steering)
– **🏗️ Scale Crawler Builds** (realistic movement)
– **⚙️ Winch & Accessory Control** (reliable operation)
– **🏆 Competition Crawling** (consistent performance)
## **⚡ 5 Crawler-Specific Advantages**
### **1. Optimized Torque Output**
– **18kg-cm @8.4V** (16kg-cm @7.4V) – More than enough for 1/10 crawlers
– **Coreless motor** for buttery-smooth low-speed control
– **Instant torque response** when tackling obstacles
### **2. Crawling-Tuned Speed**
– **0.06s/60° @8.4V** – Fast when you need it, slow when you don’t
– **≤3μs deadband** for precise wheel placement
– **500-2500μs PWM range** for fine adjustment
### **3. Ultra-Compact Design**
– **41×20×28.5mm** fits tight crawler chassis
– **70g lightweight** construction
– **Dual-side mounting** options
### **4. Crawler-Tough Construction**
– **Aluminum alloy housing** with cooling fins
– **Hardened steel gears** (50,000+ cycles)
– **IP67 waterproof/dustproof** rating
### **5. Easy Crawler Integration**
– **Standard 25T spline output**
– **Waterproof connectors** included
– **Direct fit** for most 1/10 crawlers
## **🛠️ Crawler Installation Guide**
### **Mechanical Setup**
1. Use **included servo tape** or **aluminum mount**
2. Maintain **<1° saver alignment**
3. Apply **waterproof grease** to output shaft
### **Electrical Connection**
– **16AWG silicone wires** recommended
– **Waterproof wiring** for wet conditions
– **Dedicated BEC** for consistent power
### **Crawling Tuning**
1. Set **neutral position (1500μs)**
2. Adjust **steering endpoints**
3. Program **drag brake effect**
4. Test **torque response**
## **✅ Crawler Reliability Testing**
### **Extreme Environment Tests**
– **500-hour rock crawling simulation**
– **10,000 obstacle impacts**
– **Mud/water immersion testing**
– **-20°C to 70°C operation verified**
### **Certifications**
– CE/RoHS compliant
– IP67 waterproof rating
– 12-month crawler warranty
## **📊 Crawling Performance Specs**
| Voltage | Speed | Torque | Waterproof |
|———|——-|——–|————|
| 6.0V | 0.08s/60° | 14kg-cm | IP67 |
| 7.4V | 0.07s/60° | 16kg-cm | IP67 |
| 8.4V | 0.06s/60° | 18kg-cm | IP67 |
**Additional Features:**
– **Coreless motor smoothness**
– **Vibration-dampened output**
– **O-ring sealed case**
## **🏆 Why Crawlers Choose This Servo**
✔ **30% smoother** than standard crawler servos
✔ **Proven in competition crawling events**
✔ **Waterproof out of the box**
✔ **Direct tech support** from crawling specialists
## **📦 Complete Crawler Package**
– 16kg coreless servo
– Waterproof servo horn
– Mounting hardware
– Crawler tuning guide
**🔍 Crawler Keywords:**
Crawler Servo | 16kg Coreless Servo | Rock Crawler Servo | Waterproof Servo | Trail Truck Servo | Scale Crawler Servo | Competition Crawler Servo | 1/10 Crawler Servo | Winch Control Servo | Compact Crawler Servo
**💡 Crawler Pro Tip:** For **technical crawling**, set your endpoints to **80%** for better rock-by-rock control!
**🛒 Order Code:** CRS-16CC-CL
**Lead Time:** 1-3 business days
**Team Driver Discounts** Available
For **crawler-specific setup advice**, contact our rock crawling experts.
