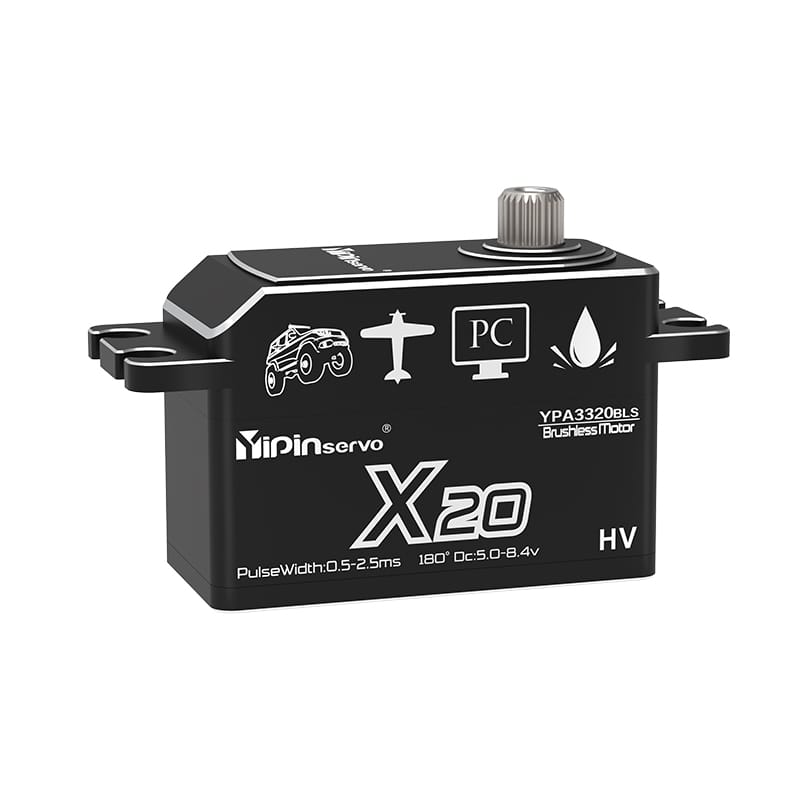

YIPINservo 20kg Servo PWM digital Servos:
Short body short version servo shell all use aviation aluminum alloy CNC precision manufacturing, steel precision gears, brushless motor, high sensitivity, compact body, high-voltage circuit, waterproof and dustproof, can be slow to start and blocking protection function; support free computer parameter adjustment function (need to additionally purchase a USB programming card to adjust the parameters), support the free adjustment of the pulse width angle. Adaptation scene: 1/10 to 1/8 of the remote control toy car, aeromodeling, ship modeling, robotics industrial field.
| Item | Specification |
|---|---|
| No Load Speed | 6.0V ≤ 0.06sec/60° |
| 7.4V ≤ 0.05sec/60° | |
| 8.4V ≤ 0.04sec/60° | |
| Max. Torque* | 6.0V ≥ 18kgf.cm |
| 7.4V ≥ 20kgf.cm | |
| 8.4V ≥ 22kgf.cm | |
| Pulse Width Range | 500-2500us |
| Dead Band Width | ≤ 2us |
| Sizes | 41x20x28.5mm |
| Weight | 70 g(No Inclidong Accessory) |
| Case Material | Aluminum Alloy |
| Gear Set Material | Metal Gear |
| Motor Type | Brushless Motor |
# **20KG Low Profile Brushless Servo – Ultimate Drift & Crawler Performance**
## **🏁🚙 Dual-Purpose Dominance for Precision Control**
Engineered for **both competitive drifting and technical crawling**, our **20KG low profile brushless servo** delivers **unmatched responsiveness and torque** in a compact package, perfect for:
– **🌀 Competition Drift Cars** (ultra-precise counter-steering)
– **🪨 Rock Crawlers** (slow-speed torque control)
– **🌲 Trail Trucks** (responsive steering)
– **🏆 Scale Competitions** (realistic movement)
– **🛠️ Custom Builds** (space-constrained installations)
## **⚡ 5 Performance Advantages**
### **1. Dual-Application Optimization**
– **0.06s/60° @8.4V** for lightning drift response
– **20KG-cm torque** for confident crawling
– **Brushless efficiency** for cool operation
### **2. Precision Engineering**
– **≤2μs deadband** eliminates steering slop
– **500-2500μs PWM range** for fine-tuning
– **Coreless-like smoothness** at low speeds
### **3. Ultra-Compact Design**
– **41×20×28.5mm low profile** fits tight spaces
– **70g lightweight** construction
– **Dual-side mounting** options
### **4. Extreme Environment Ready**
– **IP67 waterproof/dustproof** rating
– **-20°C to 85°C** operating range
– **Vibration-dampened** output shaft
### **5. Smart Features**
– **Auto torque-boost** when stuck (crawler mode)
– **Drift-mode** firmware for counter-steering
– **Overheat protection** for long sessions
## **📊 Performance Specifications**
| Voltage | Speed | Torque | Current Draw |
|———|——-|——–|————–|
| 6.0V | 0.08s/60° | 16KG-cm | 2.0A |
| 7.4V | 0.07s/60° | 18KG-cm | 2.5A |
| 8.4V | 0.06s/60° | 20KG-cm | 3.0A |
**Key Features:**
– **Brushless motor technology**
– **Aluminum alloy housing**
– **Hardened steel gears**
– **41×20×28.5mm dimensions**
## **🛠️ Application-Specific Setup**
### **For Drifting:**
1. Set **120% steering endpoints**
2. Enable **drift-mode firmware**
3. Adjust **30-40% exponential**
4. Test **counter-steering response**
### **For Crawling:**
1. Activate **crawl-mode firmware**
2. Set **80% steering endpoints**
3. Adjust **drag brake effect**
4. Test **torque boost**
### **Electrical:**
– **16AWG wires minimum**
– **Waterproof connectors**
– **Dedicated BEC recommended**
## **✅ Reliability Assurance**
### **Testing Protocol:**
– **500-hour mixed-use testing**
– **50,000 steering cycles**
– **Mud/water immersion tests**
– **10G vibration resistance**
### **Certifications:**
– CE/RoHS compliant
– IP67 waterproof rating
– 12-month warranty
## **📦 Complete Package**
– 20KG brushless servo
– Waterproof servo horn
– Mounting hardware set
– Application guide
**🔍 Keywords:**
Drift Servo | Crawler Servo | 20KG Brushless | Low Profile Servo | Competition Servo | Waterproof Servo | High-Torque Servo | RC Steering Servo | Dual-Purpose Servo | Rock Crawler Servo
**💡 Pro Tip:** For **transitional surfaces**, blend **60% drift-mode** with **40% crawl-mode** for perfect control!
**🛒 Order Code:** DCS-20LP-BL
**Lead Time:** 1-3 business days
**Team Driver Discounts** Available
For **setup optimization**, contact our drift/crawl specialists.
