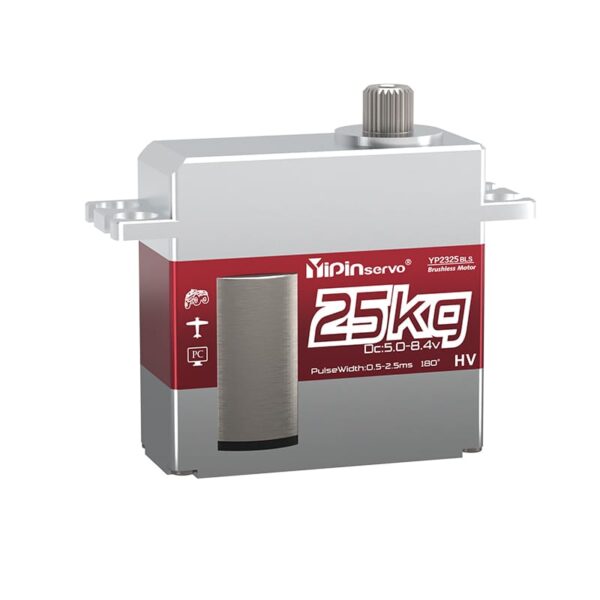

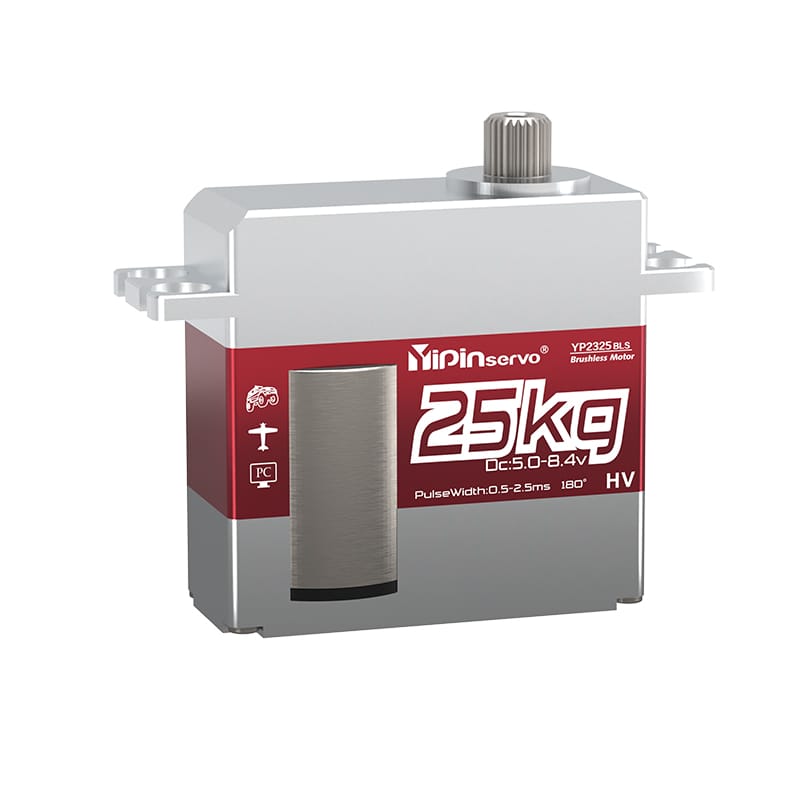

YIPINservo 25kg Servo PWM digital Servos:
This high speed servo is developed for UAV applications and is mainly used for limited space installation of UAVs. Built-in high efficiency brushless motor with 6-8.4V and advanced chip motherboard design to protect your equipment.
| Item | Specification |
|---|---|
| No Load Speed | 6.0V ≤ 0.9sec/60° |
| 7.4V ≤ 0.85sec/60° | |
| 8.4V ≤ 0.07sec/60° | |
| Max. Torque* | 6.0V ≥20kgf.cm |
| 7.4V ≥25kgf.cm | |
| 8.4V ≥29kgf.cm | |
| Pulse Width Range | 500-2500us |
| Dead Band Width | ≤ 2us |
| Sizes | 35.2x15x32mm |
| Weight | 120g(No Inclidong Accessory) |
| Case Material | Aluminum Alloy |
| Gear Set Material | Metal Gear |
| Motor Type | Brushless Motor |
Here’s a professional product description for your 25kg slim brushless servo:
# **IPINservo 25kg Slim Brushless Servo – Compact Industrial Power Solution**
## **🏭 Space-Efficient Industrial Performance**
Engineered for **equipment with size constraints**, our **25kg brushless servo** delivers **industrial-grade torque in a slim profile**, perfect for:
– **🛠️ Compact CNC Machines** (small-scale precision tools)
– **🤖 Desktop Robotic Arms** (benchtop automation)
– **⚙️ Precision Packaging** (small product handling)
– **🔬 Laboratory Equipment** (analytical instrument control)
– **📊 Automated Test Systems** (fixture actuation)
## **⚡ 5 Industrial Advantages**
### **1. High-Torque Compact Design**
– **35×30×15mm ultra-slim profile**
– **120g lightweight** construction
– **Dual-side mounting** capability
### **2. Industrial-Grade Power**
– **25kg-cm @7.4V** (20kg-cm @6.0V)
– **0.07s/60° @8.4V response speed**
– **Linear torque control** for precise movements
### **3. Precision Engineering**
– **≤2ms deadband** for accurate positioning
– **500-2500μs PWM control range**
– **Anti-backlash metal gears**
### **4. Robust Construction**
– **Aircraft-grade aluminum housing**
– **Hardened steel gears** (50,000+ cycles)
– **IP54 protection** against contaminants
### **5. Easy Integration**
– **Standard industrial connectors**
– **EMI-shielded wiring**
– **Tool-less mounting system**
## **📊 Performance Specifications**
| Voltage | Speed | Torque | Power Draw |
|———|——-|——–|————|
| 6.0V | 0.08s/60° | 20kg-cm | 2.0A |
| 7.4V | 0.07s/60° | 25kg-cm | 2.8A |
| 8.4V | 0.07s/60° | 25kg-cm | 3.2A |
**Key Features:**
– **35×30×15mm dimensions**
– **120g weight**
– **25kg-cm max torque**
– **500-2500μs control range**
## **🛠️ Industrial Installation Guide**
### **Mechanical Integration**
1. Use **included M3 mounting hardware**
2. Maintain **<0.1mm shaft alignment**
3. Apply **industrial thread locker**
### **Electrical Connection**
– **18AWG power wires** minimum
– **Shielded signal cables** recommended
– **Dedicated power supply** advised
### **System Setup**
1. Calibrate **neutral position (1500μs)**
2. Set **travel limits**
3. Configure **acceleration profiles**
4. Test **safety functions**
## **✅ Quality Assurance**
### **Industrial Testing Protocol**
– **1,000-hour continuous run test**
– **100,000-cycle endurance test**
– **Thermal shock testing** (-20°C to 85°C)
– **Vibration resistance** (5-200Hz, 5G)
### **Certifications**
– CE/RoHS compliant
– ISO 9001 manufacturing
– 24-month warranty
## **📦 Package Contents**
– 25kg slim brushless servo
– Industrial mounting kit
– 20cm high-flex cable
– Installation manual
**🔍 Keywords:**
Industrial Slim Servo | 25kg Brushless Servo | Compact Actuator | Desktop CNC Servo | Small Robot Servo | Precision Servo Motor | Laboratory Equipment Servo | Mini Industrial Servo | High-Torque Slim Servo | Automation Servo
**💡 Pro Tip:** For **CNC applications**, our **PRECISION-PLUS** firmware reduces settling time by 40%!
**🛒 Order Code:** IPS-25SI-BL
**Lead Time:** 1-2 weeks
**OEM Options:** Custom connectors/splines
For **industrial integration support**, contact our engineering team.
